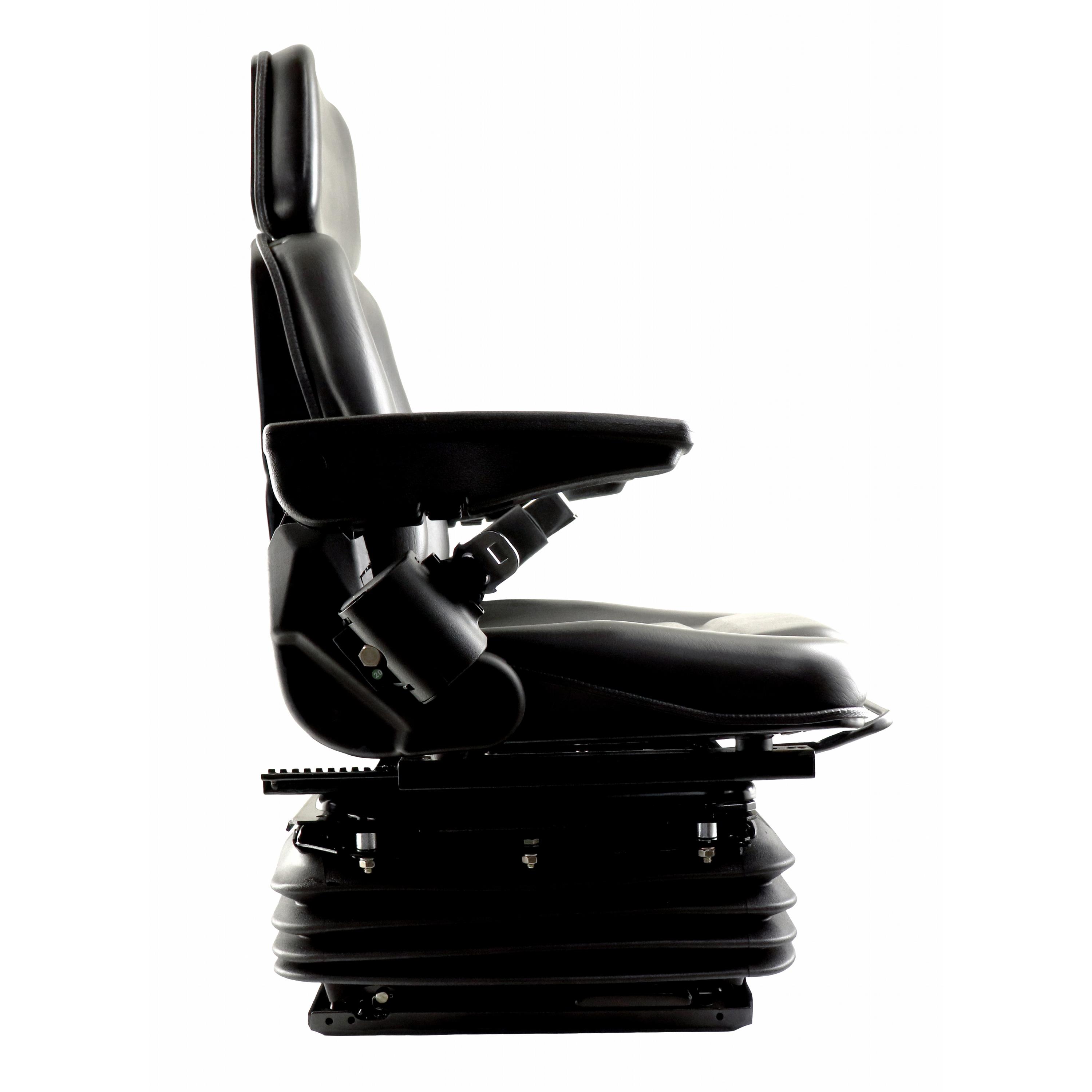

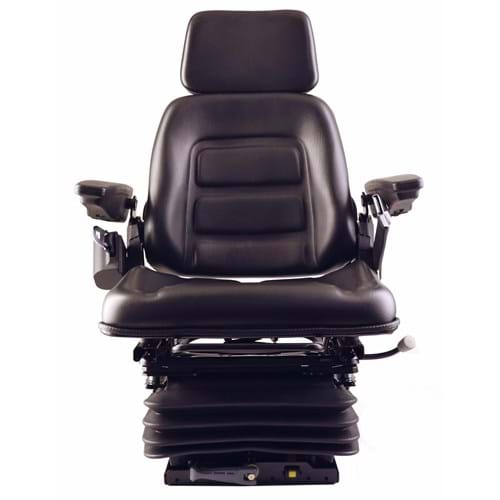

High Back Seat, Black Vinyl w/ Mechanical Suspension

S830809

In Stock

Free Freight Eligible More info

$871.51

Product Notes

Durable black vinyl molded cushions for extra support & easy cleaning. A swivel has been installed for easy entry/exit & operator positioning. Retractable seat belt, adjustable arm rests & back cushion, along with the weight & three position height adjusment on the suspension, you are ensured to have a safe seating system as well as a comfortable ride. Some minor drilling may be required.
See more Specifications
The S830809 High Back Seat, Black Vinyl w/ Mechanical Suspension fits equipment brands such as: Belarus, Case IH, Hesston-Fiat, Montana, Zetor

Product Specs

ColorBlack
MaterialVinyl
SuspensionMechanical
ArmrestsYes
Seat Belt IncludedYes
Operator Presence SwitchNo
Slide Rails IncludedYes

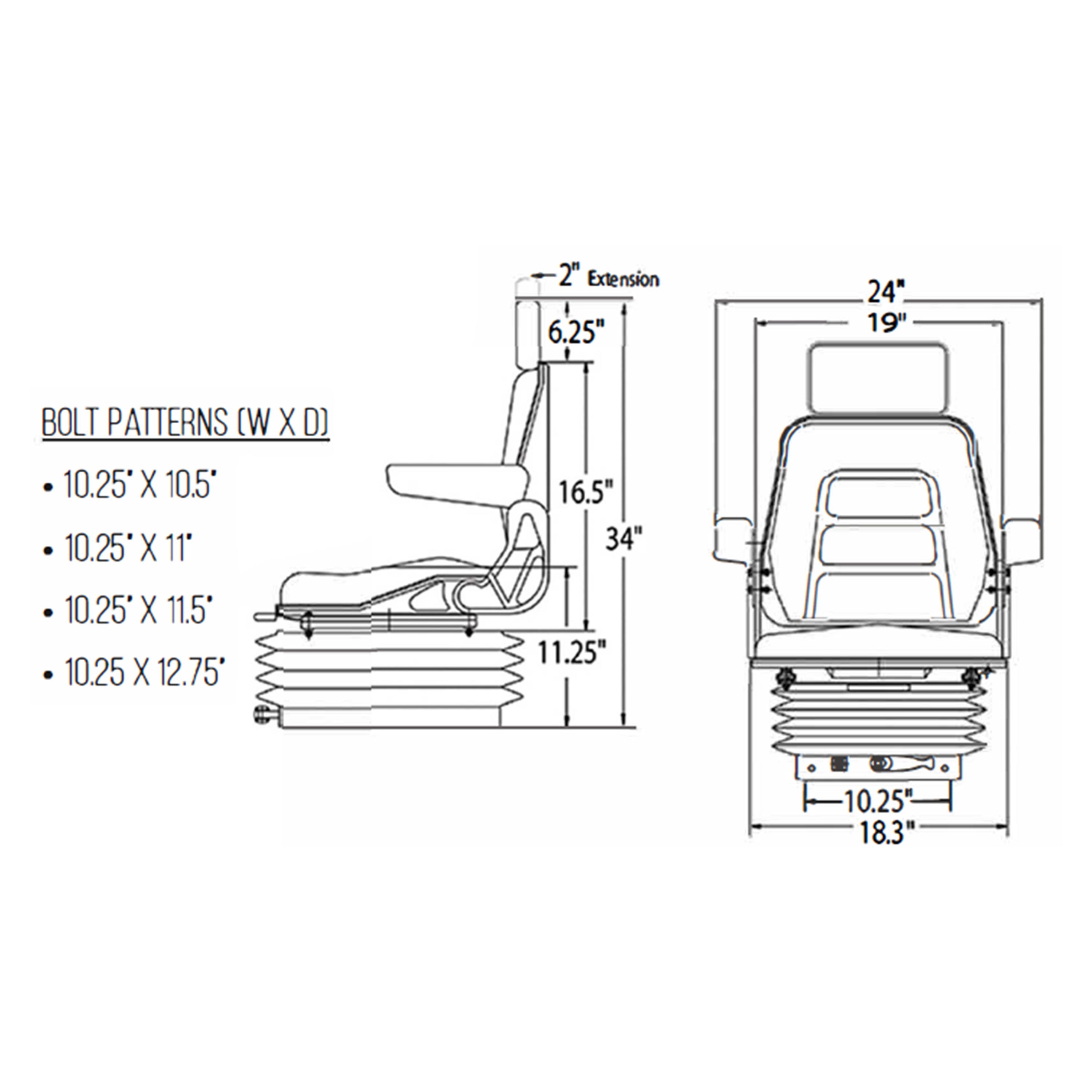

Dimensions24 in x 19-3/4 in x 34 in
Seat Foam Thickness2 in
Max Operator Weight286 lb
Sold AsEach
Warranty1 Year

Documents & Resources -

S830809 - Tech Spec

Reviews

Review Summary: 0% (0); 0% (0); 0% (0); 0% (0); 0% (0)

Please log in to Write a Review

You must be logged in to write a review, be the first to write it!

This Part Fits These Machines

Fit Notes are displayed after the Model

Belarus

Tractor: 505 Some Mounting Modifications May Be Required, Seat Does Not Have Safety Switch 525M Some Mounting Modifications May Be Required, Seat Does Not Have Safety Switch

Case IH

Tractor: 5120 Optional Replacement Seat, does not allow for Operator Presence Switch, some drilling may be required. 5130 Optional Replacement Seat, does not allow for Operator Presence Switch, some drilling may be required. 5140 Optional Replacement Seat, does not allow for Operator Presence Switch, some drilling may be required. 5220 Optional Replacement Seat, does not allow for Operator Presence Switch, some drilling may be required. 5230 Optional Replacement Seat, does not allow for Operator Presence Switch, some drilling may be required. 5240 Optional Replacement Seat, does not allow for Operator Presence Switch, some drilling may be required. 5250 Optional Replacement Seat, does not allow for Operator Presence Switch, some drilling may be required.

Hesston-Fiat

Tractor: 1580 Some Mounting Modifications May Be Required, Seat Does Not Have Safety Switch 1580DT Some Mounting Modifications May Be Required, Seat Does Not Have Safety Switch 1880 Some Mounting Modifications May Be Required, Seat Does Not Have Safety Switch 1880DT Some Mounting Modifications May Be Required, Seat Does Not Have Safety Switch

Montana

Tractor: U5784C Some Mounting Modifications May Be Required, Seat Does Not Have Safety Switch

Zetor

Tractor: 7321 Some Mounting Modifications May Be Required, Seat Does Not Have Safety Switch 8540 Some Mounting Modifications May Be Required, Seat Does Not Have Safety Switch
